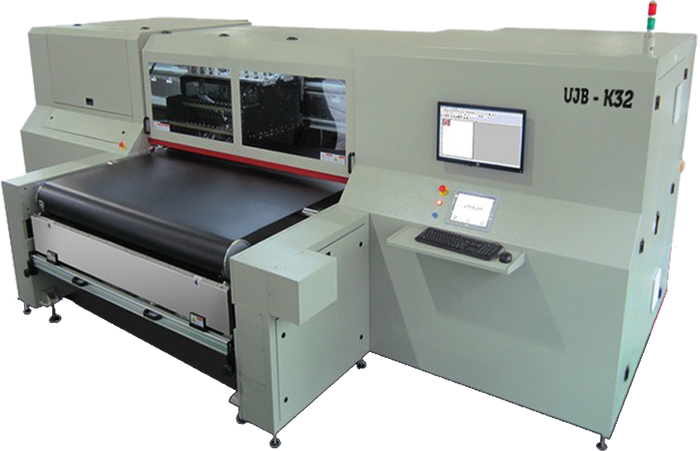

The UJB by Fab Nation Ind. is a state-of-the-art European Standard direct to fabric digital printer which offers unmatched printing performance and improves your production capacity. This amazing machine has Kyocera EX-600 high-performance print heads, which allow you to print at a high speed while achieving an exceptional print quality and consistency. Available in 8, 16 and 32 print heads version, it is adaptable to meet your specific printing requirements with multiple model options offering.
430m/hr, 482 m2 /hr at 1.12m width
Air Blade system: A unique contactless printhead cleaning system with forceless wiping technique, enhancing the life span of the print head.
Print head maintenance system: A unique built-in print head maintenance system integrated into the ink supply module, featuring an ink flow back system that allows seamless switching between ink and head cleaning fluid for regular print head cleaning.
Load cell control: This system provides full closed-loop engineering from media feeding up to media winding. The system automatically adjusts different media tension, force, and torque during the feeding process.
Connectivity Options:
Ink Consumption: 4-6 ml/sq.mtr. (best in class).
Display: 10” touch panel display.
Interface: Express PCI and fiber optic.
RIP: Software open to main RIP providers.
Washing Unit: SUS washing unit with brush and wiper, motorized roller, sponge roller, sliding control device for easy maintenance. Optional heater system.
